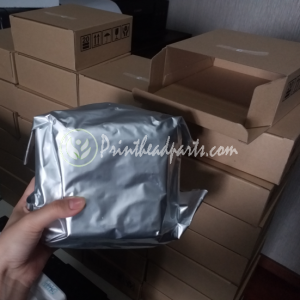

Konica KM1024i SHE 6PL Printhead

$781.00

Reference:

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure.
SKU: PPHKM19715
Quantity

Description

The Konica Minolta KM1024i SHE printhead is a robust, shear mode, piezo on-demand printhead featuring an All-nozzle Independent Drive System with a Multi-line Structure. In contrast with the existing 3-cycle system drive, an independent drive system that enables simultaneous emission from all 1024 nozzles has been adopted. The high-density structure featuring 4 lines of 256 nozzles aligned with high precision enhances positioning accuracy to realize high-definition print quality. The Konica Minolta KM1024i SHE printhead offers a Maximum Drive Frequency of 60kHz, approximately 3 Times greater than that of the KM1024 Series, which makes it the ideal inkjet printhead for development of single-pass system inkjet printers capable of high-speed printing.

Environmentally-considerate Approved Green Product
The Konica Minolta KM1024i SHE printhead incorporates only approximately one-third of the petroleum-derived materials and toxic chemicals used in the current KM1024 Series. In addition, the nozzle unit surface area is the same as that of the KM1024 Series.


Specifications
• Technology: Piezo Drop On-Demand

• Native Resolution: 360 dpi
• Cal. Droplet Size: 6 pl
• Max. Drops in Greyscale: 8 drops
• Tot. Amount of Nozzles: 1024 (256 nozzles per line)
• Print Width: 72 mm
• Typical Firing Frequency: 50 Khz
• Max Firing Frequency: 60 kHz
• Ink Compatibility: UV Inks
• Heater: integrated
• Dimensions: W131mm x D18mm x H94mm
• Weight: Approx. 150g

Printer compatibility

Allwin S320UV
Allwin S500UV
Allwin UVT 2030
Allwin UVT 2512
Allwin UVT+ 2030
Allwin UVT+ 2512

Docan H1000

Flora HJ 5000UV

Human Digital Technology M-JET

IIJ ColourPrint-72

JHF Vista R3300
JHF Vista R6000
JHF Vista V300UV
JHF Vista V500UV

Optimum Digital KR Hybrid UV

Skyjet FT2512i
Skyjet FT3020i

Taimes T50UV

Yicong YD2512-KD
