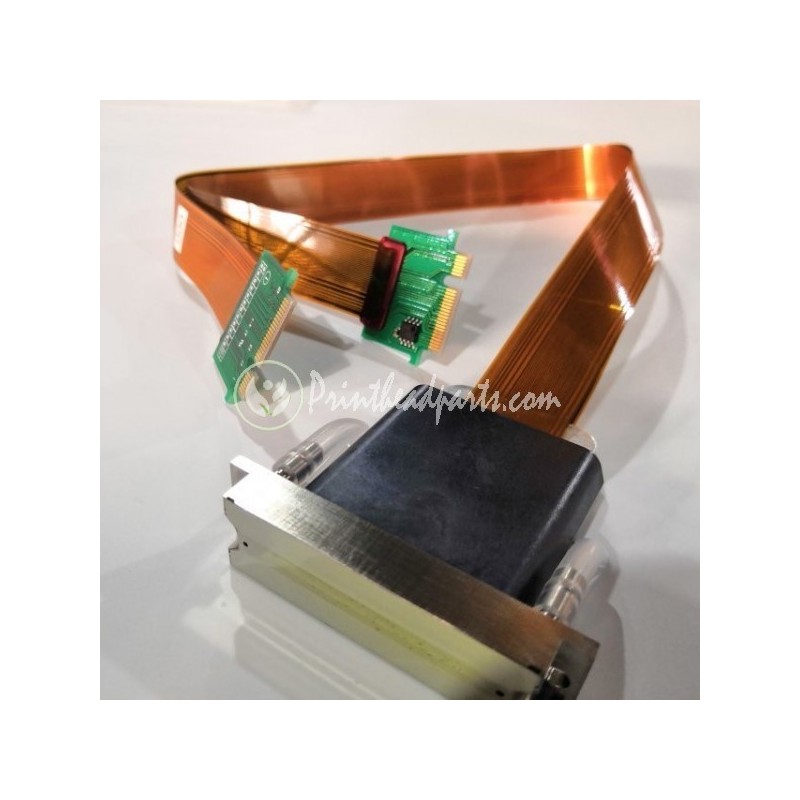

Ricoh MH5420 GEN5 UV Printhead (Cable: 248mm) - N221414J



This Ricoh GEN5 UV printhead with a cable length of 248mm is suitable for a range of UV and solvent printers.
Manufacturer part number: N221414J


This GEN5 UV printhead is suitable for a range of UV and solvent printers (Ricoh part number N221414J). It supports up to four colours and has a total of 1.280 nozzles. It is built with longevity and robustness in mind and used in the latest industrial inkjet printers. This is Ricoh original printhead part (number MH5420) and it is covered by a manufacturer warranty. This Ricoh GEN5 is available in two different cable lengths (connector included): 248mm and 500mm. This printhead has a cable of 248mm.

Product Specifications

  • Dimensions: 89 x 25 x 69 mm (excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coated SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693 mm
  • Nozzle density: up to 600 npi
  • Piezo type: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80° C
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHZ
  • Ink compatibility: UV Inks
  • Life: 100 billion actuations per nozzle

Printer compatibility

Agfa Jeti Mira MG2716 S/HS
Agfa Jeti Mira MG2732 S/HS
Agfa Jeti Tauro H2500
Agfa Jeti Titan HS
Agfa Jeti Titan S
Akad NovaJet UV M6
CET Color Q5-1000
CET Color Q5-1000h
CET Color Q5-250
CET Color Q5-250h
CET Color Q5-500
CET Color Q5-500h
Docan 1212 UV
Docan FR3210
Docan FRT3116
Docan M10
Docan M6
Docan M8
Handtop HT1600UV HR4
Handtop HT1610UV FR4
Handtop HT2500UV HR8
Handtop HT2512UV-D FR8
Handtop HT3116UV FR8
Handtop HT3200UV HG12
Handtop HT3200UV HR8
Mimaki UJV500-160
1111 Items
