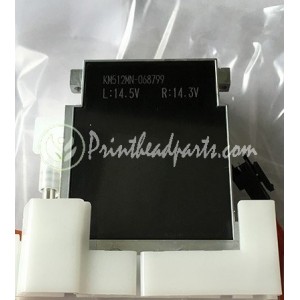

Konica KM512 MN 14PL Printhead



The Konica Minolta KM512 MN print head is compatible with oil based, solvent and UV inks.


The Konica Minolta KM512 MN print head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 4 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM512 MN print head has 512 nozzles with a droplet size of 14 pico litre and a native resolution of 360 dpi. It is compatible with oil based, solvent and UV inks. This print head is also known as the Konica Minolta KM512 MNX. This is Konica original print head and it includes the necessary waveform information.

Agfa part number for this printhead is D2+2409021. The KM512 MN 14PL is not suitable for the varnish or white ink on the Agfa :Anapurna Mv and :Anapurna Mw printers. Please order PPHKM512LN if you need print heads for varnish (Mv) of white ink (Mw).


  • Technology: On-Demand Piezo Electric
  • Native Resolution: 360 dpi
  • Cal. Droplet Size: 14 pico litre
  • Max. Drops in Greyscale: 3 drops
  • Tot. Amount of Nozzles: 512 (256 nozzles per line)
  • Nozzle Spacing: 70.5 microns
  • Print Width: 36.1 mm
  • Firing Frequency: 12.8 kHz
  • Ink Compatibility: Oil Based, Solvent and UV Inks
  • Heater: not integrated

Printer compatibility

Agfa Anapurna M
Agfa Anapurna M4f
Agfa Anapurna Mv
Agfa Anapurna Mw
Allwin C8
Anhui Liyu Maxima PZ3204-KM
Anhui Liyu Maxima PZ3206-KM
Canon Océ CS6060
Canon Océ CS6100
DGI OrionJet OR-1806
DGI SaturnJet ST-1806
Dilli Neo Titan UVT-1606S
Dilli Neo Titan UVT-1606W
DYSS Apollo PTP18/3202-KC
DYSS Apollo PTP18/3204-KC
DYSS Apollo PTP18/3206-KC
DYSS Apollo PTP1804-KL
DYSS Apollo PTP1806-KL
DYSS Apollo PTP1808-KL
DYSS Apollo PTP3204-KL
DYSS Apollo PTP3204-KM
DYSS Apollo PTP3206-KL
DYSS Apollo PTP3208-KL
DYSS Apollo PTR3204-KL
Flora HJ 3200 Turbo
HP Designjet 10000s
HP Designjet 9000s
Icontek 3306
JHF Vista H8 3304FN
JHF Vista H8 3306FNS
Myjet LB3208KM42
Myjet LE3208KM42
Myjet WB3208KM42
Myjet WC3208KM14
Oki ColorPainter 100S
Oki ColorPainter 64S
Rodin K4320-A
Rodin K4320-B
Rodin K6164-B
Rodin K8320-B
Skynet HS-Series
Skynet PC-Series
Sun Innovations Neo Da Vinci
Taimes T5
Taimes T7
