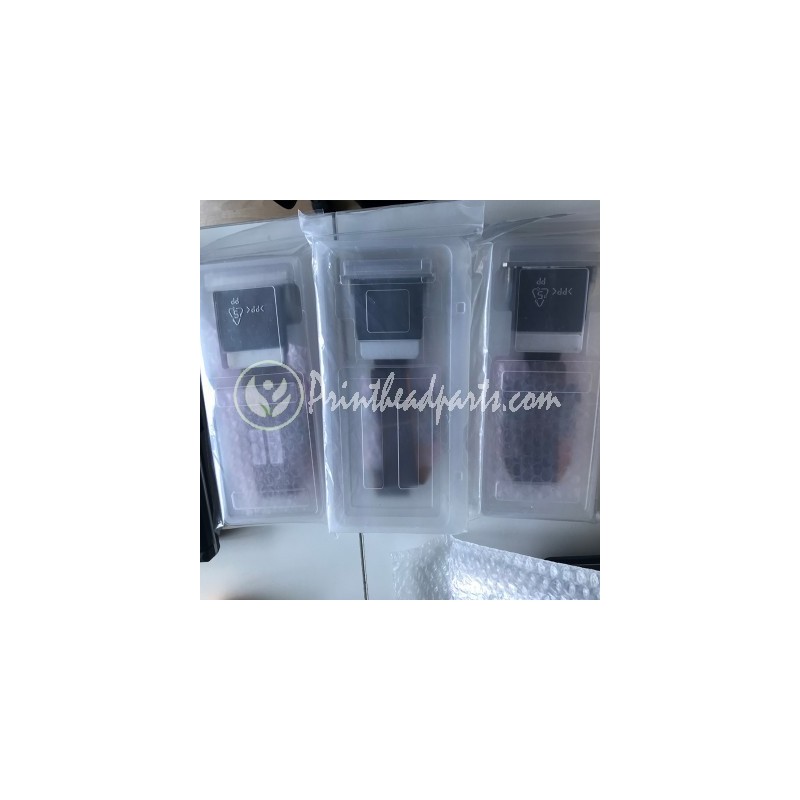

Ricoh GEN4L 15PL Printhead - MH2620 (Hose barb)

$1,090.00

Reference:

The Ricoh GEN4L printhead is suitable for a range of oil, water, solvent and UV printers. This printhead has an integrated heater and thermistor.
SKU: PPHRI19181
Quantity

Description

The Ricoh GEN4L printhead is suitable for a range of oil, water, solvent and UV printers, including the original D.Gen Teleios Grande, D.Gen Teleios (TJ-2600) and Teleios (TJ-3333). This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty.

This printhead is not compatible with the newer D.Gen Teleios Grande G5 or Teleios Grande/H6. These printers use Ricoh GEN5 Printhead Water (PPHRI18045).

Technical Specifications

- Size: 13,2 x 120 x 75,5 mm (excluding cables)
- Head Materials: SST, Ni and Epoxy Adhesive (direct contact with ink)
- Nozzle Plate Surface: Non-wet coating
- Number of Nozzles: 2 x 192 nozzles
- Nozzle Spacing: 0,1693 mm
- Piezo Type: D33 Stacked PZT
- Temperature Control: Integrated Heater and Thermistor
- Operator Temperature range: Up to 80° C
- Native Drop Volume: 15 pl
- Drop Volume Range: 15-45 pl
- Jetting Frequency: Up to 30 kHZ
- Life: 100 billion actuations per nozzle

Printer compatibility

AmicaSystems PA32

d.gen Teleios Grande (3333TX)
d.gen Teleios (TJ-2600)
d.gen Teleios Grande (TJ-3333)
d.gen Teleios XL (XL2600)
d.gen Artrix GTII
